Functional lighting poles
Round tapered functional lighting pole from 3 to 12 m, supplied as a complete set with bracket and LED luminaire. Luminaire outreach 0.6 to 1.6 m.
Le mât VEGA is made of steel and hot-dip galvanised. The luminaire can be fitted post-top, side-entry or on a catenary (Ø 60/76/89 mm). Available heights: 3 to 12 m. Supplied on its own or as a complete set with bracket, accessories and luminaire.
| Model | Standard pole |
|---|---|
| Shaft shape | Round tapered |
| Material | Steel S235JR or S275JR |
| Luminaire fixing | Post-top, side-entry or catenary — Ø 60/76/89 mm |
| Pole height | 3 to 12 m |
| Wall thickness | 3 mm |
| Protection | Hot-dip galvanised; optional RAL powder coating (duplex system) |
| Markings | CE to EN 40 · NM to NM 01.8.353 |
| Set | Luminaire | Bracket | Accessories |
|---|---|---|---|
| VEGA 12 m | Ateria (LED) | Teriza S1.2m T60 bracket | — |

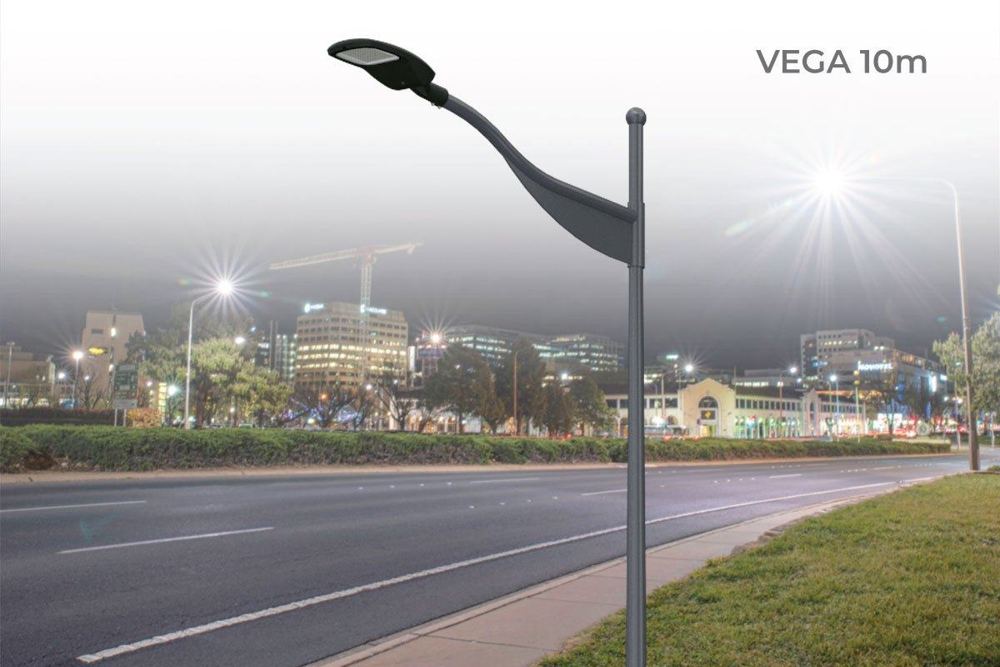

| VEGA 10 m | Tilal 2 (LED) | Nikko S1m bracket | Stainless steel ball |
| VEGA 8 m | Elux (LED) | Alpha S1m arm | Stainless steel ball |
| H (m) | DT (mm) | DB (mm) | HP (mm) | LP (mm) | DPP (mm) | L × l (mm) | EA (mm) | DTS (mm) |
|---|---|---|---|---|---|---|---|---|
| 2.5 | 60 / 76 / 89 | 90 / 106 / 119 | 400 | 70 | 500 | 65 x 70 | 200 | 16 - 300 |
| 3 | 60 / 76 / 89 | 90 / 112 / 125 | 400 | 70 | 500 | 65 x 70 | 200 | 16 - 300 |
| 3.5 | 60 / 76 / 89 | 102 / 118 / 131 | 400 | 70 | 500 | 65 x 70 | 200 | 16 - 300 |
| 4 | 60 / 76 / 89 | 108 / 124 / 137 | 400 | 70 | 500 | 65 x 70 | 200 | 16 - 300 |
| 4.5 | 60 / 76 / 89 | 114 / 130 / 143 | 400 | 70 | 500 | 80 x 100 | 200 | 16 - 300 |
| 5 | 60 / 76 / 89 | 120 / 136 / 149 | 400 | 70 | 500 | 80 x 100 | 200 | 16 - 300 |
| 6 | 60 / 76 / 89 | 132 / 148 / 161 | 400 | 90 | 500 | 80 x 100 | 300 | 20 - 600 |
| 7 | 60 / 76 / 89 | 144 / 160 / 173 | 400 | 90 | 500 | 80 x 100 | 300 | 20 - 600 |
| 8 | 60 / 76 / 89 | 156 / 172 / 185 | 400 | 90 | 500 | 80 x 100 | 300 | 20 - 600 |
| 9 | 60 / 76 / 89 | 168 / 184 / 197 | 400 | 90 | 500 | 80 x 100 | 300 | 20 - 600 |
| 10 | 60 / 76 / 89 | 180 / 196 / 209 | 400 | 100 | 500 | 80 x 100 | 300 | 20 - 600 |
| 11 | 60 / 76 / 89 | 192 / 208 / 221 | 400 | 100 | 500 | 80 x 100 | 300 | 20 - 600 |
| 12 | 60 / 76 / 89 | 204 / 220 / 233 | 400 | 100 | 500 | 80 x 100 | 300 | 20 - 600 |
Key : H: pole height · DT: top diameter · DB: base diameter · HP / LP: access door height / width · DPP: base plate to door bottom · L × l: gear compartment · EA: anchor bolt spacing · DTS: anchor bolts.
No document online for this product yet. Ask our team for the datasheet.
