CAPELLA lighting set
Octagonal tapered pole from 3 to 12 m, for LED luminaires on brackets or floodlights on crossarms.
Overview
Le mât CAPELLA is made of steel and hot-dip galvanised. The luminaire can be fitted post-top, side-entry or on a catenary (Ø 60/76/89 mm). Available heights: 3 to 12 m. Supplied on its own or as a complete set with bracket, accessories and luminaire.
Technical specifications
| Model | Standard pole |
|---|---|
| Shaft shape | Octagonal tapered |
| Material | Steel S235JR or S275JR |
| Luminaire fixing | Post-top, side-entry or catenary — Ø 60/76/89 mm |
| Pole height | 3 to 12 m |
| Wall thickness | 4 mm |
| Protection | Hot-dip galvanised; optional RAL powder coating (duplex system) |
| Markings | CE to EN 40 · NM to NM 01.8.353 |
Typical sets
| Set | Luminaire | Bracket | Accessories |
|---|---|---|---|

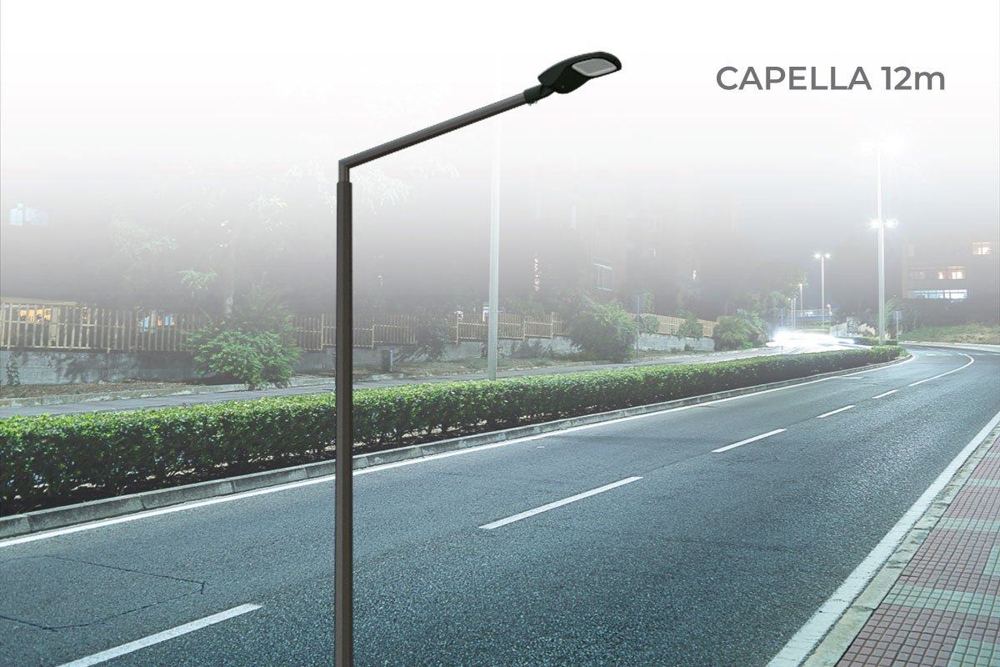

| CAPELLA 12 m | Tilal 2 (LED) | KC single S2m bracket | Straight crossarms |
| CAPELLA 10 m | Ateria (LED) | CR KC double S0.5m H0.5m bracket | — |
| CAPELLA 9 m | Flood Slim LED floodlight | — | Straight crossarm, floodlights, rungs, safety cable |
Dimension table
| H (m) | DT (mm) | DB (mm) | HP (mm) | LP (mm) | DPP (mm) | L × l (mm) | EA (mm) | DTS (mm) |
|---|---|---|---|---|---|---|---|---|
| 2.5 | 60 | 156 / 191 / 222 | 400 | 70 | 500 | 65 x 70 | 300 | 16 - 300 |
| 3 | 60 | 156 / 191 / 222 | 400 | 70 | 500 | 65 x 70 | 300 | 16 - 300 |
| 3.5 | 60 | 156 / 191 / 222 | 400 | 70 | 500 | 65 x 70 | 300 | 16 - 300 |
| 4 | 60 | 156 / 191 / 222 | 400 | 70 | 500 | 65 x 70 | 300 | 16 - 300 |
| 4.5 | 60 | 156 / 191 / 222 | 400 | 70 | 500 | 80 x 100 | 300 | 16 - 300 |
| 5 | 60 | 156 / 191 / 222 | 400 | 70 | 500 | 80 x 100 | 300 | 16 - 300 |
| 6 | 60 | 156 / 191 / 222 | 400 | 90 | 500 | 80 x 100 | 300 | 20 - 600 |
| 7 | 60 | 156 / 191 / 222 | 400 | 90 | 500 | 80 x 100 | 300 | 20 - 600 |
| 8 | 60 | 156 / 191 / 222 | 400 | 90 | 500 | 80 x 100 | 300 | 20 - 600 |
| 9 | 60 | 156 / 191 / 222 | 400 | 90 | 500 | 80 x 100 | 300 | 20 - 600 |
| 10 | 60 | 156 / 191 / 222 | 400 | 100 | 500 | 80 x 100 | 300 | 20 - 600 |
| 11 | 60 | 156 / 191 / 222 | 400 | 100 | 500 | 80 x 100 | 300 | 20 - 600 |
| 12 | 60 | 156 / 191 / 222 | 400 | 100 | 500 | 80 x 100 | 300 | 20 - 600 |
Key : H: pole height · DT: top diameter · DB: base diameter · HP / LP: access door height / width · DPP: base plate to door bottom · L × l: gear compartment · EA: anchor bolt spacing · DTS: anchor bolts.
Applications
- Urban and interurban roads
- Avenues, boulevards and roundabouts
- Residential areas and housing estates
- Car parks and business parks
Options and configurations
- Standard base-plate version; direct-burial version on request
- Top accessories: LED light tip, steel or stainless steel ball, conical cap
- Intermediate accessories: light point, name plate, municipal logo
- Base accessories: Torino base with grooves, Torino base-plate cover, Torino base
- Access doors: concealed hinge, flush, overlapping, rebated or ventilated
- Tamper-proof or triangular screws
- Pole foot protection: bitumen, PVC sleeve or coating
- Powder coating in RAL colours (Marcont Colori)
Documentation
No document online for this product yet. Ask our team for the datasheet.
Request the datasheetFunctional lighting poles
